Dual MPPT architecture
Two MPP trackers with one PV string per tracker, covering typical three-phase residential arrays.
Growatt · Three-phase PV Inverter

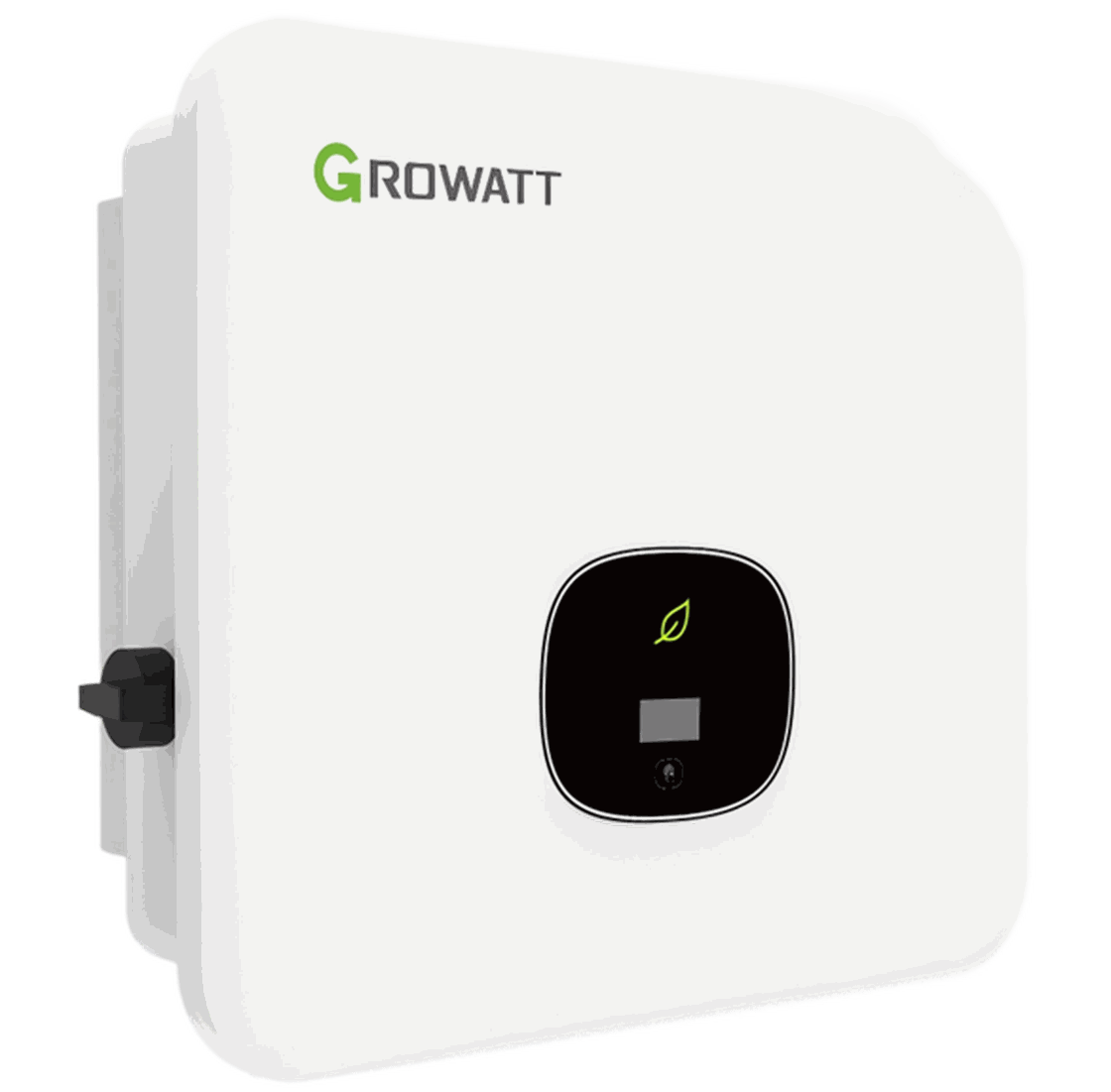

Growatt MOD 3000-9000TL3 X
Three-phase grid-connected PV inverter family from 3kW to 9kW, with dual MPP trackers, up to 98.6% maximum efficiency and IP66 protection.
- 3-9kW
- 2 MPPTs
- Up to 98.6% max. efficiency
- IP66
Available Models
Seven verified output options
Model-level values below are taken from the Growatt MOD 3000-9000TL3-X datasheet supplied for the TRESUN website.
| Model | Nominal AC power | Recommended PV power | MPPTs | Max. efficiency | Weight |
|---|---|---|---|---|---|
| MOD 3000TL3-X | 3,000W | 4,500W | 2 | 98.3% | 12.5kg |
| MOD 4000TL3-X | 4,000W | 6,000W | 2 | 98.3% | 12.5kg |
| MOD 5000TL3-X | 5,000W | 7,500W | 2 | 98.3% | 12.5kg |
| MOD 6000TL3-X | 6,000W | 9,000W | 2 | 98.3% | 12.5kg |
| MOD 7000TL3-X | 7,000W | 10,500W | 2 | 98.6% | 14kg |
| MOD 8000TL3-X | 8,000W | 12,000W | 2 | 98.6% | 14kg |
| MOD 9000TL3-X | 9,000W | 13,500W | 2 | 98.6% | 14kg |
Datasheet Features
Features
Up to 98.6% efficiency
Maximum efficiency is 98.3% on 3-6kW models and 98.6% on 7-9kW models.
OLED and touch button
The datasheet specifies OLED plus LED display and WiFi/APP monitoring options.
Specified protection
Type II SPD is specified on both DC and AC sides. String monitoring is listed as standard and AFCI is optional.
Product Family
Specifications
For preliminary product matching. Confirm the exact model and destination-market grid requirements before quotation.
- Maximum DC voltage
- 1100V
- Start voltage
- 200V
- MPPT voltage range
- 140-1000V
- PV strings per MPP tracker
- 1
- Max. input current per MPP tracker
- 13A
- Max. short-circuit current per MPP tracker
- 16A
- Nominal AC voltage
- 220V / 380V, 230V / 400V
- AC grid frequency
- 50 / 60Hz
- AC grid connection
- 3W + N + PE
- THDi
- <3%
- Protection degree
- IP66
- Cooling
- Natural convection
- Operating temperature
- -25°C to +60°C
- Dimensions (W / H / D)
- 425 / 387 / 147mm or 178mm
- Interfaces
- USB and RS485; WiFi, GPRS, LAN and RF optional
Application Fit
Three-phase residential and light-commercial PV projects
The MOD 3000-9000TL3-X family is a compact three-phase inverter range for homes, shops and light-commercial rooftops requiring 3-9kW nominal AC output.
Technical Source
Manufacturer datasheet
Growatt MOD 3000-9000TL3-X datasheet supplied in the TRESUN inverter library. Specifications may change; confirm the exact model before order placement.
Project Enquiry
Request model matching and a quotation
Please provide the target model or output power, grid voltage, PV string design, destination market and required quantity.
