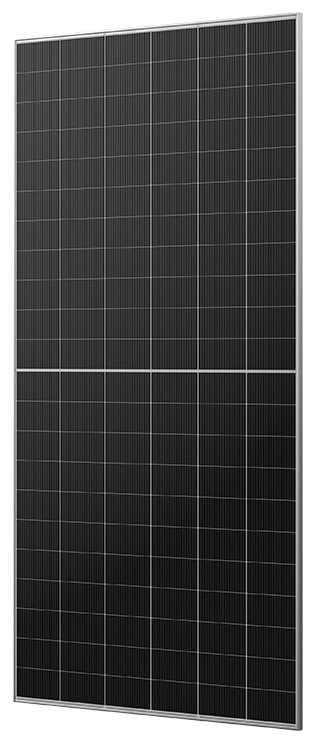

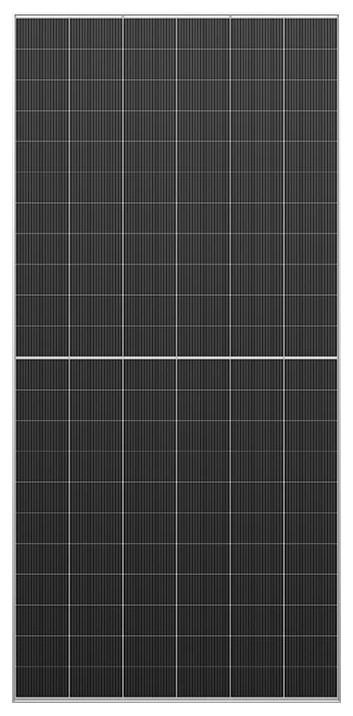

Techwise Solar / Sun-Pursuit Plus Series 182×210
TW-620HT-02 (N Type)
N-type TOPCon monocrystalline bifacial solar module family with 605W to 630W output, 132 half-cells and up to 23.31% module efficiency.
- 605-630W
- N-Type TOPCon
- 132 Cells (6×22)
- Up to 23.31%
- 0 to +5 W Power Tolerance
15-YearProduct Warranty
30-YearLinear Power Warranty
OEM/ODM Support
Product Features
N-Type TOPCon bifacial module features
Lower heat spot risk
Excellent low-light performance
Resilient to extreme weather
PID resistant

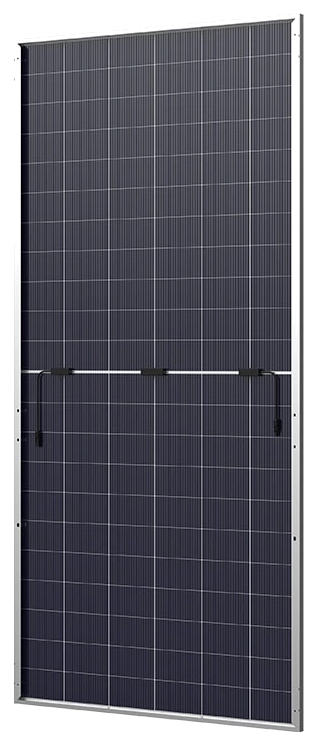

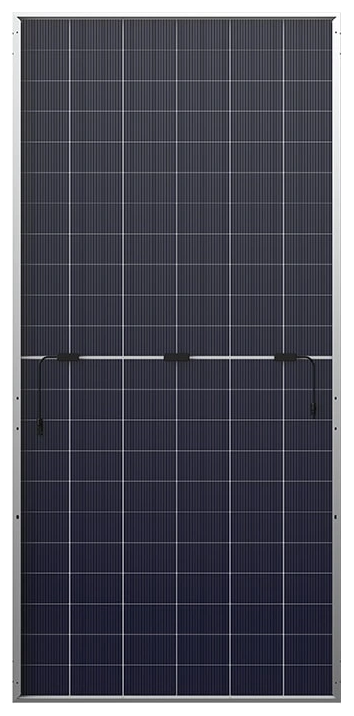

Double-sided electricity generation
Electricity Parameters @STC
605-630W electrical performance
| Parameter | 605W | 610W | 615W | 620W | 625W | 630W |
|---|---|---|---|---|---|---|
| Max power output Pmax (W) | 605 | 610 | 615 | 620 | 625 | 630 |
| Power output tolerance (W) | 0 to +5 | |||||
| Max power voltage Vmp (V) | 40.50 | 40.80 | 41.10 | 41.40 | 41.70 | 41.90 |
| Max power current Imp (A) | 14.94 | 14.96 | 14.98 | 14.99 | 15.01 | 15.04 |
| Open circuit voltage Voc (V) | 48.70 | 49.00 | 49.30 | 49.60 | 49.90 | 51.20 |
| Short circuit current Isc (A) | 15.83 | 15.86 | 15.89 | 15.91 | 15.94 | 15.97 |
| Module efficiency (%) | 22.38 | 22.56 | 22.75 | 22.93 | 23.12 | 23.31 |
| Reference double-sided factor (%) | 80 +/- 5% | |||||
STC: irradiance 1000 W/m2, component temperature 25 C, atmospheric quality 1.5. Power test tolerance +3%. Product specifications may change without notice. Values transcribed from FT132HBG 605-630W.
Bifacial Gain
Bifacial power and efficiency
| Parameter | 605W | 610W | 615W | 620W | 625W | 630W |
|---|---|---|---|---|---|---|
| 5% max power output Pmax (W) | 635 | 641 | 646 | 651 | 656 | 661 |
| 5% module efficiency (%) | 23.50 | 23.69 | 23.89 | 24.08 | 24.27 | 24.45 |
| 15% max power output Pmax (W) | 696 | 702 | 707 | 713 | 719 | 724 |
| 15% module efficiency (%) | 25.74 | 25.95 | 26.16 | 26.37 | 26.59 | 26.78 |
| 25% max power output Pmax (W) | 756 | 763 | 769 | 775 | 781 | 787 |
| 25% module efficiency (%) | 27.97 | 28.20 | 28.44 | 28.67 | 28.90 | 29.11 |
Electricity Parameters @NMOT
NMOT electrical performance
| Parameter | 605W | 610W | 615W | 620W | 625W | 630W |
|---|---|---|---|---|---|---|
| Max power output Pmax (W) | 457 | 461 | 464 | 468 | 472 | 476 |
| Max power voltage Vmp (V) | 37.88 | 38.16 | 38.44 | 38.72 | 39.00 | 39.18 |
| Max power current Imp (A) | 12.06 | 12.08 | 12.10 | 12.10 | 12.12 | 12.14 |
| Open circuit voltage Voc (V) | 46.36 | 46.64 | 46.93 | 47.22 | 47.50 | 48.74 |
| Short circuit current Isc (A) | 12.78 | 12.80 | 12.83 | 12.84 | 12.87 | 12.89 |
NMOT: irradiance 800 W/m2, ambient temperature 20 C, atmospheric quality 1.5, wind speed 1 m/s.
Temperature Coefficient
Temperature coefficients
| Parameter | Value |
|---|---|
| Temperature coefficient of Pmp | -0.29%/C |
| Temperature coefficient of Voc | -0.24%/C |
| Temperature coefficient of Isc | +0.04%/C |
Module Specification
Construction and system ratings
| Physical construction parameters | |
|---|---|
| Type of cell | TOPCon |
| Number of half-cell | 132 (6×22) |
| Module sizes L x W x H | 2382 x 1134 x 30mm |
| Weight | 32.5 (+/-3%) kg |
| Frame | Anodized aluminium |
| Junction box | IP68 |
| Standard length of cable | 300mm or customized |
| Operating conditions | |
|---|---|
| Max. system voltage | 1500V DC |
| Operation temperature | -40 to +85 C |
| Max. wind load and snow load | 2400 / 5400 Pa |
| Max. over current | 30A |
| Application level | Class A |
| Fire protection rating | Class B |
| Normal operating cell temperature | 42 +/- 3 C |
| Packaging information | |
|---|---|
| Individual pallet | 36 pieces per tray |
| 17.5m / 13.5m / 40HQ | 864 / 792 / 576 pieces |
