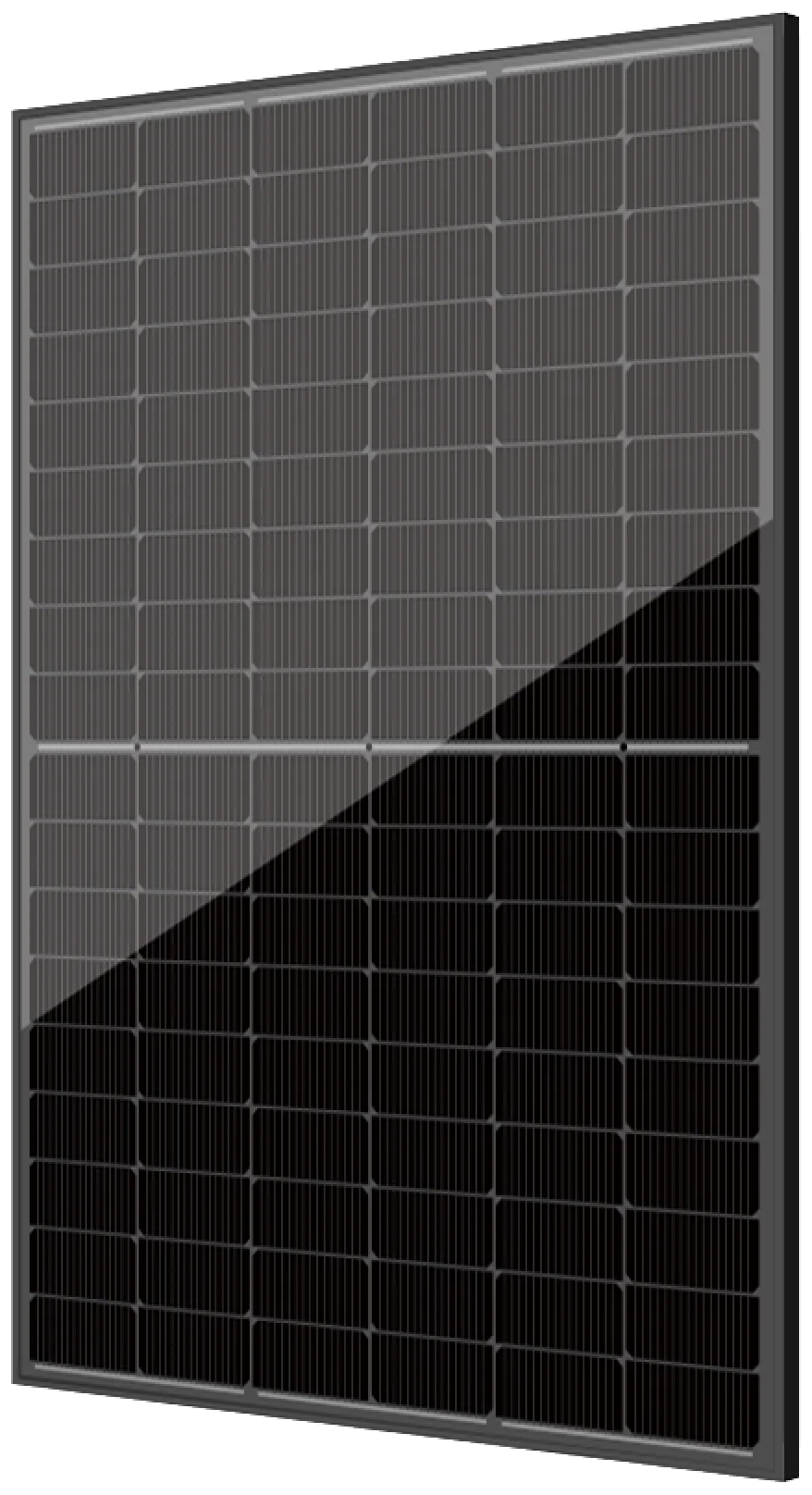

Techwise Solar · Sun-Pursuit Pro Series 182
TW-450HT-06 (N Type)
N-type TOPCon monocrystalline bifacial solar module family with 430W to 450W output, 108 cells and up to 23.04% module efficiency.
- 430–450W
- N-Type TOPCon
- 108 Cells
- Up to 23.04%
- 0 to +3% Power Tolerance
15-YearProduct Warranty
30-YearLinear Power Warranty
OEM/ODM Support
Product Features
N-Type TOPCon bifacial module features
Lower heat spot risk
Excellent low-light performance
Resilient to extreme weather
PID resistant

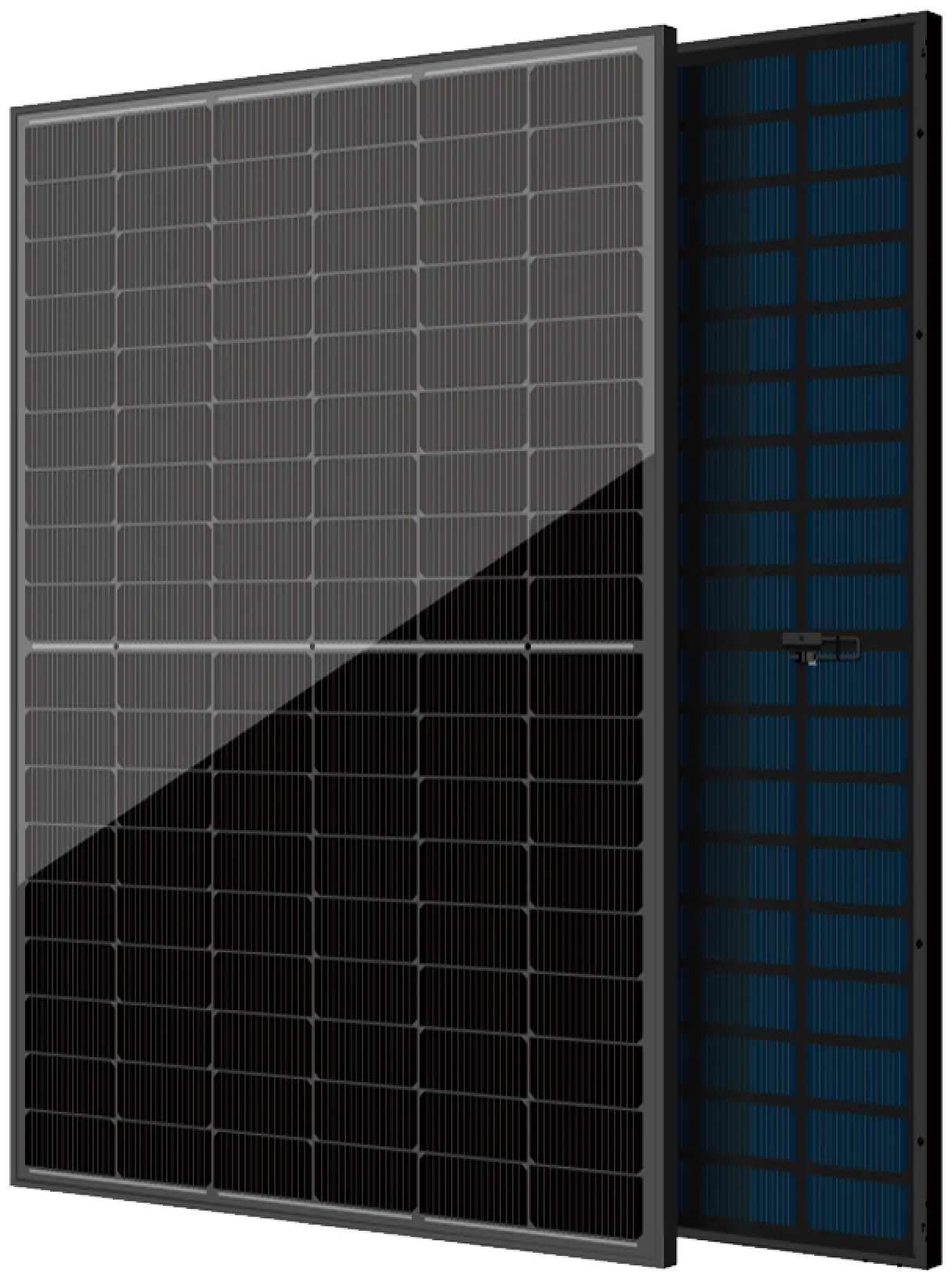

Double-sided electricity generation
STC Standard Performance
430–450W electrical performance
| Power level | 430W | 435W | 440W | 445W | 450W |
|---|---|---|---|---|---|
| Pmax (W) | 430 | 435 | 440 | 445 | 450 |
| Vmp (V) | 32.98 | 33.23 | 33.49 | 33.74 | 33.99 |
| Imp (A) | 13.04 | 13.09 | 13.14 | 13.19 | 13.24 |
| Voc (V) | 39.69 | 39.98 | 40.28 | 40.39 | 40.68 |
| Isc (A) | 13.71 | 13.77 | 13.83 | 13.89 | 13.95 |
| Module efficiency (%) | 22.02 | 22.28 | 22.53 | 22.79 | 23.04 |
Module Specification
Construction and system ratings
- Cell type
- Monocrystalline
- Cell quantity
- 108 cells
- Cell size
- 182 × 91mm
- Module size
- 1722 × 1134 × 30mm
- Module weight
- 24.6kg
- Glass thickness
- 2.0mm
- Frame material
- Anodized aluminium alloy
- Junction box
- IP68
- Cable / connector
- 4mm², MC4 compatible
- Cable length
- +300mm / -300mm; customization available
- Maximum system voltage
- 1500V DC
- Maximum fuse rating
- 30A
- Power tolerance
- 0 to +3%
Project Enquiry
Request a quote for TW-450HT-06
Select 430W, 435W, 440W, 445W or 450W and provide the project quantity and destination market.
